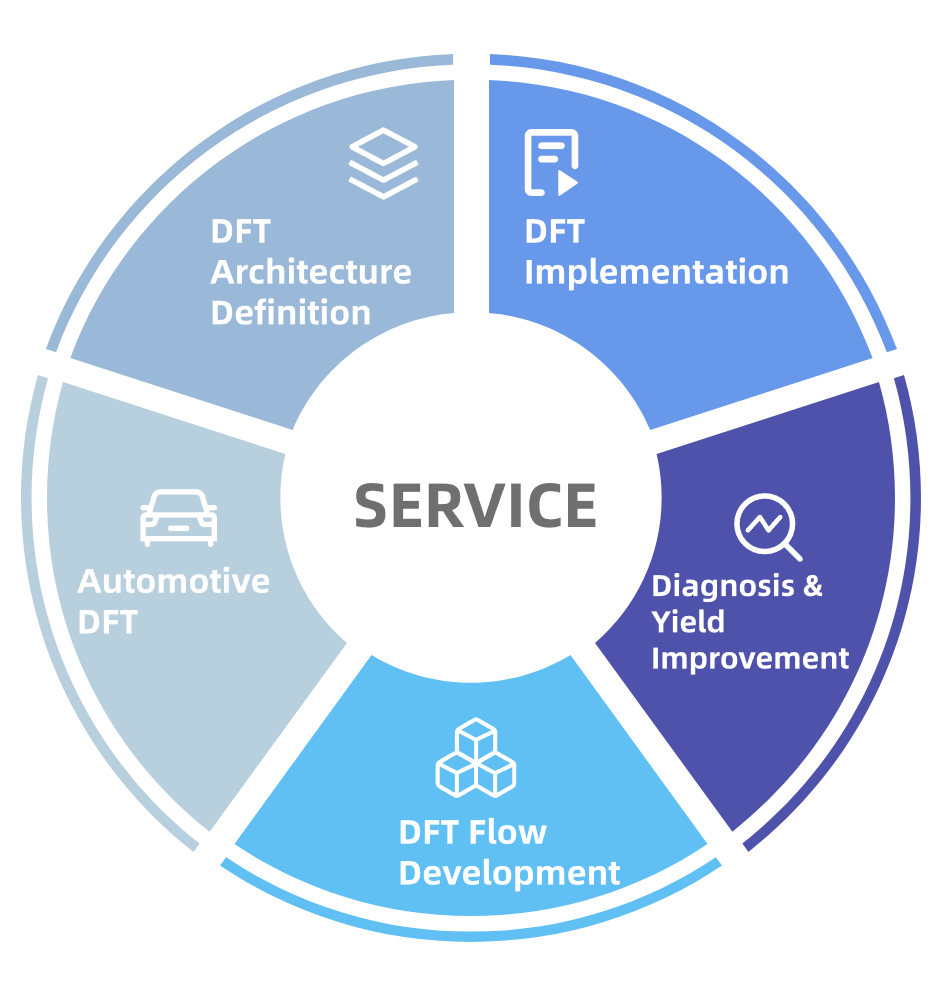

DFT 設計服務 （DFT Design Service）
DFT（Design for Test）技術作為業界的標準手段，通過在芯片設計時加入測試專用電路，增加芯片的可測試性
簡介

DFT（Design for Test）技術作為業界的標準手段，通過在芯片設計時加入測試專用電路，增加芯片的可測試性。如何降低測試成本，同時測試電路占用芯片設計上較小的面積，達到更高的故障覆蓋率，已成為當前產業界的一個關鍵難題。
廣立微與子公司億瑞芯聯合推出可測性設計自動化和良率診斷解決方案及服務。成功案例包括國內多家頭部的設計公司，產品涵蓋MCU,ADAS, GPU, CPU,AI,5G, Video。用戶可輕松應對復雜的SoC芯片、大規模芯片的診斷測試、汽車電子的功能性安全測試以及良率提升等挑戰，取得質量與成本雙贏。

Architecture Definition

  • Test Mode Definition
  • IO plan、Test Plan、Burn-In plan
  • MBIST、Repair、SCAN、Logic BIST、In-System-Test、BSCAN Structure Definition
  • 3rd-party IP Test Interface Definition

Automotive DFT

  • In-System-Test
    IST Controller and LBIST Controller Insertion
    DMA Mode IST Integration to Support Power Self-test
    CPU Interface IST Integration to Support Periodic Self-test
    IST +MBIST+LBIST Verification
  • Low DPPM solution
    Automotive Level ATPG
    User Defined MBIST Algorithm
    High Coverage Implementation( Scan Structure + Testpoint)

DFT Flow Development

  • DFT Insert：IST Controller、MBIST、Repair、BSCAN、IJTAG Network、OCC、Compress Structure、Logic BIST Controller  Insertion
  • SCAN Insertion and Hierarchical ATPG
  • Pre-sim+Post-sim Simulation Environment
  • Formal Check、 DFT SDC Integration
  • Cell Aware ATPG、Diagnosis and Yield Improvement Flow

DFT Project Implementation

  • RTL Insertion
    Block level and Top level Insertion for MBIST,Compress, OCC, BSCAN, LBIST, IST, IJTAG Network
  • Scan Insertion
    SCAN Chain、Wrapper Cell Insertion and EDT Connection
  • ATPG
    Graybox Generation and DC/AC ATPG
  • Simulation
    MBIST、BSCAN、IJTAG Network、Chain/AC/DC Simulation
  • SDC
    MBIST&AC Capture、Scan Shift、DC Capture SDC Generation，F(xiàn)lattern SDC Generation
  • Formal Check
    Pre-DFT vs Post-DFT

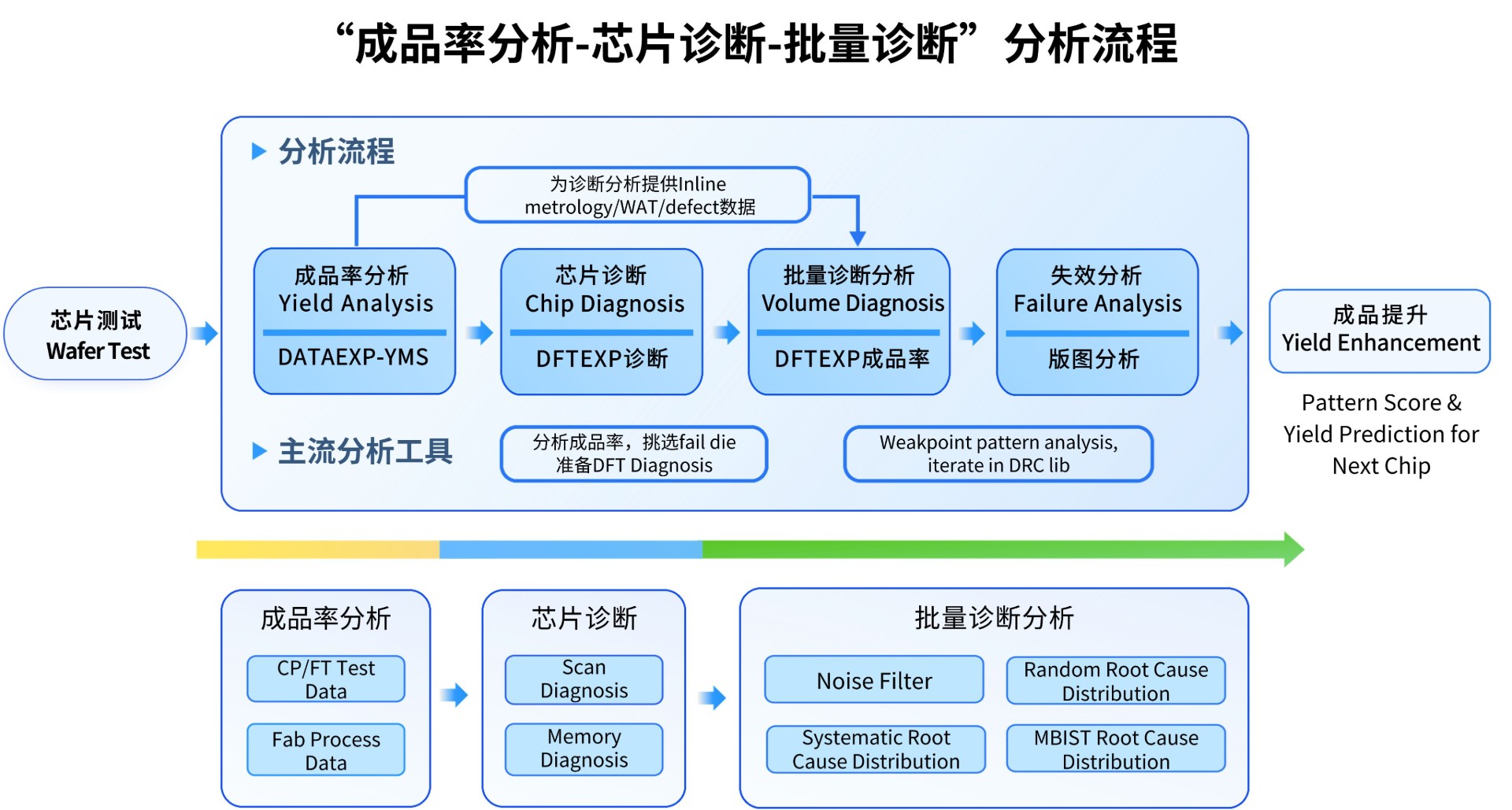

Diagnosis and Yield Improvement

  • ATPG Diagnosis
    Diagnosis Environment Setup
    Chain Diagnosis Flow Build up
    Layout Aware Scan Diagnosis
    Transition Diagnosis
    Cell Aware Diagnosis
    Yield Analysis Flow Setup
  • MBIST Diagnosis
    Build Lab MBIST Diagnosis
    Build Mass Products MBIST Diagnosis
